Advanced moding Set-Up

1.- Managing mod assets

1.- Create a new directory in “oot” folder to store all new mod assets with: mkdir mod_assets

2.- Now copy the script stored in this git: https://gist.github.com/krm01/4ca28bb24d5410d186d10cc96f6f9e5d

Git file
//(Content from 01/12/2023)
#!/usr/bin/env python3
"""
copies mod_assets into assets. assumes file is located at project root
"""
import os
import shutil
import time
import glob
import typing as T
from pathlib import Path


def log(msg: str):
   print(f"[{__file__}]: {msg}")


def remove_stale_assets(root: str, copied_files: T.List[str], last_cache_time: int):
   modified_times: T.Dict[str, int] = { file: int(os.path.getmtime(file)) for file in copied_files }
   stale = [file for file, ts in modified_times.items() if ts > last_cache_time]

   if len(stale) == 0:
      log(f"No stale assets since last build")
      return

   removed_count = 0
   for file in stale:
      rel = os.path.relpath(file, root)
      pattern = os.path.join(root, "build", os.path.dirname(rel), "*")
      for match in glob.glob(pattern, recursive=True):
            os.remove(match)
            removed_count += 1

   log(f"Removed {removed_count} stale asset(s) from {root}")


def copy_all(root: str) -> T.List[str]:
   src_root = os.path.join(root, "mod_assets")
   dst_root = os.path.join(root, "assets")
   copied_files: T.List[str] = []
   for src_dir, _, file_names in os.walk(src_root):
      dst_dir = src_dir.replace(src_root, dst_root, 1)
      Path(dst_dir).mkdir(parents=True, exist_ok=True)
      for file_name in file_names:
            src_file = os.path.join(src_dir, file_name)
            dst_file = os.path.join(dst_dir, file_name)
            shutil.copy2(src_file, dst_file)
            copied_files.append(dst_file)

   log(f"Copied {len(copied_files)} file(s) from mod_assets")
   return copied_files


def remove_stale_actors(root: str, last_cache_time: int):
   actors_src_dir = os.path.join(root, "src", "overlays", "actors")
   actors_build_dir = os.path.join(root, "build", "src", "overlays", "actors")
   stale_directories = set()
   for actor_dir, _, actor_files in os.walk(actors_src_dir):
      for actor_file in actor_files:
            modified_time = os.path.getmtime(os.path.join(actor_dir, actor_file))
            if modified_time > last_cache_time:
               stale_directories.add(actor_dir)

   removed = 0
   for actor_dir in stale_directories:
      overlay_name = os.path.split(actor_dir)[1]
      build_path = os.path.join(actors_build_dir, overlay_name)
      if os.path.exists(build_path):
            log(f"Removing stale actor {overlay_name}")
            shutil.rmtree(build_path)
            removed += 1

   if removed == 0:
      log("No stale actors since last build")
   else:
      log(f"Removed {removed} total stale actors")


def update_cache_time(root: str) -> int:
   build_dir = os.path.join(root, "build")
   if not os.path.exists(build_dir):
      os.mkdir(build_dir)
   cache_file = os.path.join(build_dir, ".mod_assets_cache")
   if os.path.exists(cache_file):
      with open(cache_file) as fd:
            last_time = int(fd.read().strip())
   else:
      last_time = 0

   with open(cache_file, "w") as fd:
      fd.write(f"{int(time.time())}")
      log(f"Updated {cache_file}")
   return last_time


def main():
   root = os.path.dirname(os.path.realpath(__file__))
   last_cache_time = update_cache_time(root)
   copied_files = copy_all(root)
   remove_stale_assets(root, copied_files, last_cache_time)
   # check actor overlays for stale include dependencies i.e. "*.inc.c"
   remove_stale_actors(root, last_cache_time)


if __name__ == "__main__":
   main()

3.- Go to VSCode and press Ctrl+N to open a new file

4.- Paste the content of the file there and save the file in /home/mega/OOT/oot/install_mod_assets.py

Warning

In th example the path starts with /home/mega/. In your case, instead of mega, you must put there your Ubuntu wsl username, the one you defined the first time you opened it.

5.- Open the Makefile file and go to the all: section

Note

You can find all section by pressing Ctrl+F and searching for all:

6.- Rename all: with buld:

7.- Over that, add another all: and paste the following code below:

python3 install_mod_assets.py
make -j$(shell nproc) build

Warning

You need to use tabulations in this file. If you use spaces, it will fail

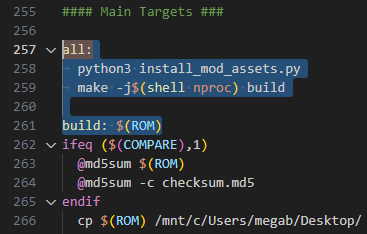

The result should look like this:

../_images/1_makefile_new_all.png

Note

This will execute the python script and then do the make build command with the maximum number fo cores available



2.- Automatically launching the emulator when generating the rom

1.- Find the Path of the emulator you want to use from the Ubuntu console.

  • You can achieve this looking for your emulator in Windows and coping the path in the top of the folder

../_images/2_emulator_path_raw.png
2.- Copy that path and go to the Ubuntu terminal

  • 1.- Type there ls -la “/mnt/ and right-click to paste the path

  • 2.- Add another “ at the end and modify the path changing the \ with /

  • 3.- Put in lowercase the letter at the beginning of the path and remove the :

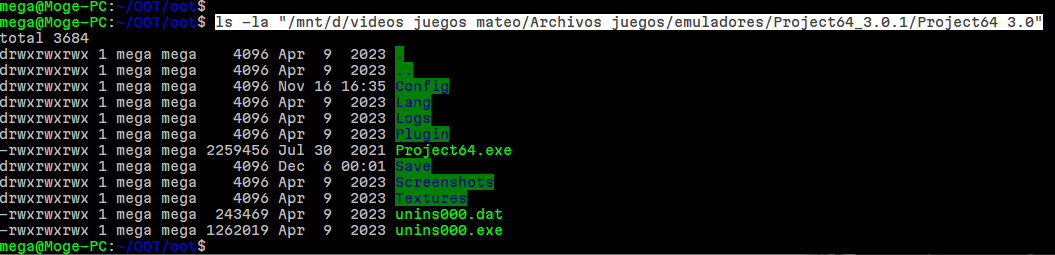

  • 4.- Press enter and, if it worked fine, you should see something like this:

../_images/2_emulator_path_ubuntu.png

Note

I’m using Project64 but you can use your favourite emulator

3.- Press Up-arrow and at the end of the path, inside the doble quotes, add the emulator “.exe” file

  • Press enter again to check that is correctly spelled.(if it’s fine,the console will output the absolute path of the file)

4.- Copy the whole path with the double quotes.

Note

You can copy by selecting the path and right-clicking. If the selection outline disappears, you have copied the selection successfuly

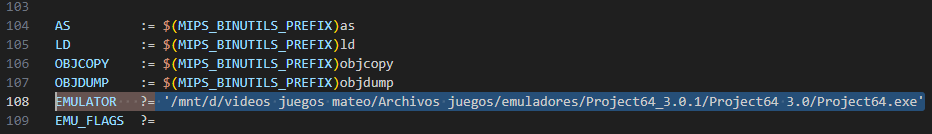

5.- Go to the Makefile file, press Ctrl+F, search for EMULATOR   ?= and paste the emulator path after the ?=

../_images/2_emulator_makefile.png

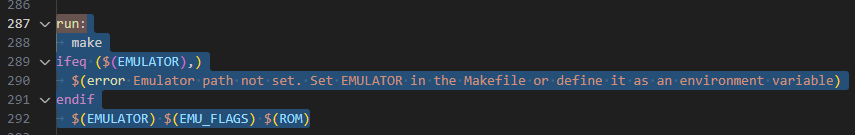

6.- In the Makefile file, search with Ctrl+F run:

  • 1.- Remove $(ROM) from the run: $(ROM)

  • 2.- Add a new line, tabulate and write make

  • 3.- A few lines below, after the endif, change the $< with $(ROM)

../_images/2_makefile_run.png

7.- If everything is done correctly, you should be able to type make run in Ubuntu console and see how the rom is built and it’s automatically executed with the emulator you selected

Note

Project64 sometimes does not load and the screen is set to black. If that happens, just clone and type make run again



3.- Using git to manage the mod project

Note

Since we already has used git to clone the oot repository, we don’t ned to run git init inside the oot folder to start a new repository

1.- To check the status of the current situation, you can type git status and you will see information about witch files have changed and witch files are new in the repository

2.- You will need to set-up two main git variables. You can do that with the following commands:

git config --global user.email "[Your e-mail]"
git config --global user.name "[Your name]"

3.- Everytime you want to save a version, execute in order the following commands:

git add -A
git commit -m “[Here you can put a descriptive message about what are the changes made in this version]”

4.- You can check the history of commits with git log

Note

to leave the log view, just pres Q



4.- Disable debug features

4-1 Create debug flags

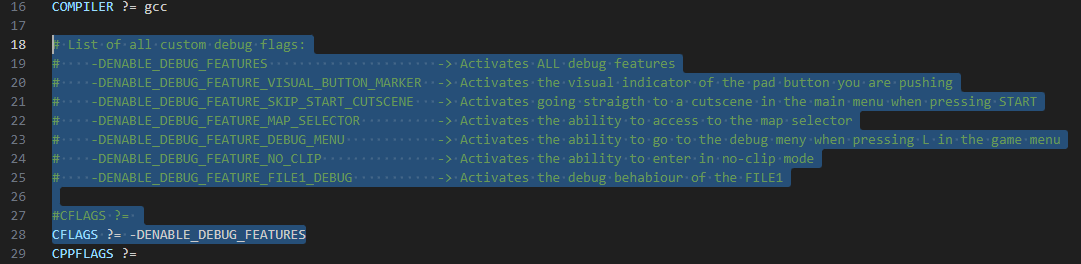

1.- Go to the Makefile file, press Ctrl+F and search for CFLAGS ?=

2.- Delete that line and paste the following code:

# List of all custom debug flags:
#    -DENABLE_DEBUG_FEATURES                      -> Activates ALL debug features
#    -DENABLE_DEBUG_FEATURE_VISUAL_BUTTON_MARKER  -> Activates the visual indicator of the pad button you are pushing
#    -DENABLE_DEBUG_FEATURE_SKIP_START_CUTSCENE   -> Activates going straigth to a cutscene in the main menu when pressing START
#    -DENABLE_DEBUG_FEATURE_MAP_SELECTOR          -> Activates the ability to access to the map selector
#    -DENABLE_DEBUG_FEATURE_DEBUG_MENU            -> Activates the ability to go to the debug meny when pressing L in the game menu
#    -DENABLE_DEBUG_FEATURE_NO_CLIP               -> Activates the ability to enter in no-clip mode
#    -DENABLE_DEBUG_FEATURE_FILE1_DEBUG           -> Activates the debug behabiour of the FILE1

#CFLAGS ?=
CFLAGS ?= -DENABLE_DEBUG_FEATURES
../_images/4_makefile_flags.png

4-2 Dissable button-press marker

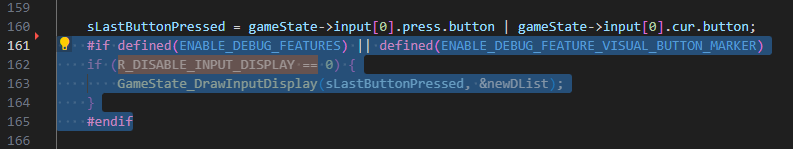

1.- In VSCode press Ctrl+P to search for a file in the environment. Search for game.c and open it

2.- Press Ctrl+F and search for R_DISABLE_INPUT_DISPLAY ==

3.- Remove the whole if statement and paste the following code:

#if defined(ENABLE_DEBUG_FEATURES) || defined(ENABLE_DEBUG_FEATURE_VISUAL_BUTTON_MARKER)
if (R_DISABLE_INPUT_DISPLAY == 0) {
    GameState_DrawInputDisplay(sLastButtonPressed, &newDList);
}
#endif
../_images/4_dissable_button_marker.png

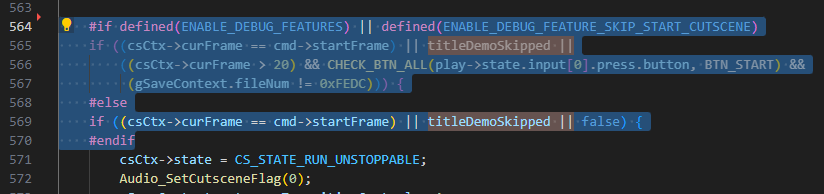

4-3 Disable skip-cutescene with start button in the game menu

1.- In VSCode press Ctrl+P to search for a file called z.demo.c and open it

2.- Press Ctrl+F and search for titleDemoSkipped ||

3.- Remove the if statement (only the if ([CONDITIONS]) { ) and paste the following code:

#if defined(ENABLE_DEBUG_FEATURES) || defined(ENABLE_DEBUG_FEATURE_SKIP_START_CUTSCENE)
if ((csCtx->curFrame == cmd->startFrame) || titleDemoSkipped ||
    ((csCtx->curFrame > 20) && CHECK_BTN_ALL(play->state.input[0].press.button, BTN_START) &&
    (gSaveContext.fileNum != 0xFEDC))) {
#else
if ((csCtx->curFrame == cmd->startFrame) || titleDemoSkipped || false) {
#endif
../_images/4_dissable_skip_cutscene.png

4-4 Disable map selector and other stuff

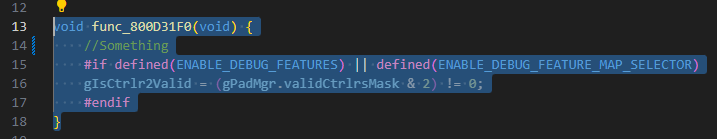

1.- In VSCode press Ctrl+P to search for a file called code_800D31A0.c and open it

2.- Remove the second function whole( func_800D31F0 ) and paste the following code:

void func_800D31F0(void) {
    //Something
    #if defined(ENABLE_DEBUG_FEATURES) || defined(ENABLE_DEBUG_FEATURE_MAP_SELECTOR)
    gIsCtrlr2Valid = (gPadMgr.validCtrlrsMask & 2) != 0;
    #endif
}
../_images/4_dissable_map_selector.png

4-5 Disable debug menu pressing L in the in-game menu

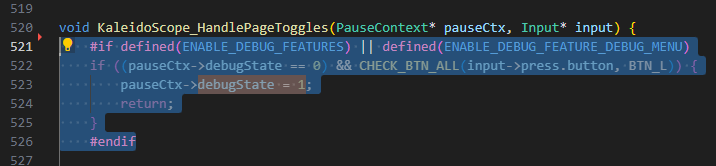

1.- In VSCode press Ctrl+P to search for a file called z_kaleido_scope_PAL.c and open it

2.- Press Ctrl+F and search for debugState = 1

3.- Remove the whole if statement and paste the following code:

#if defined(ENABLE_DEBUG_FEATURES) || defined(ENABLE_DEBUG_FEATURE_DEBUG_MENU)
if ((pauseCtx->debugState == 0) && CHECK_BTN_ALL(input->press.button, BTN_L)) {
    pauseCtx->debugState = 1;
    return;
}
#endif
../_images/4_dissable_L_menu.png

4-6 Disable no clip

1.- In VSCode press Ctrl+P to search for a file called z_player.c and open it

2.- Press Ctrl+F and search for DEBUG MODE

3.- Remove the whole function ( func_8084FCAC ) and paste the following code:

Function replacement
s32 func_8084FCAC(Player* this, PlayState* play) {
    #if defined(ENABLE_DEBUG_FEATURES) || defined(ENABLE_DEBUG_FEATURE_NO_CLIP)
    sControlInput = &play->state.input[0];

    if ((CHECK_BTN_ALL(sControlInput->cur.button, BTN_A | BTN_L | BTN_R) &&
        CHECK_BTN_ALL(sControlInput->press.button, BTN_B)) ||
       (CHECK_BTN_ALL(sControlInput->cur.button, BTN_L) && CHECK_BTN_ALL(sControlInput->press.button, BTN_DRIGHT))) {

        D_808535D0 ^= 1;

        if (D_808535D0) {
            Camera_RequestMode(Play_GetCamera(play, CAM_ID_MAIN), CAM_MODE_Z_AIM);
        }
    }

    if (D_808535D0) {
        f32 speed;

        if (CHECK_BTN_ALL(sControlInput->cur.button, BTN_R)) {
            speed = 100.0f;
        } else {
            speed = 20.0f;
        }

        DebugCamera_ScreenText(3, 2, "DEBUG MODE");

        if (!CHECK_BTN_ALL(sControlInput->cur.button, BTN_L)) {
            if (CHECK_BTN_ALL(sControlInput->cur.button, BTN_B)) {
                this->actor.world.pos.y += speed;
            } else if (CHECK_BTN_ALL(sControlInput->cur.button, BTN_A)) {
                this->actor.world.pos.y -= speed;
            }

            if (CHECK_BTN_ANY(sControlInput->cur.button, BTN_DUP | BTN_DLEFT | BTN_DDOWN | BTN_DRIGHT)) {
                s16 angle;
                s16 temp;

                angle = temp = Camera_GetInputDirYaw(GET_ACTIVE_CAM(play));

                if (CHECK_BTN_ALL(sControlInput->cur.button, BTN_DDOWN)) {
                    angle = temp + 0x8000;
                } else if (CHECK_BTN_ALL(sControlInput->cur.button, BTN_DLEFT)) {
                    angle = temp + 0x4000;
                } else if (CHECK_BTN_ALL(sControlInput->cur.button, BTN_DRIGHT)) {
                    angle = temp - 0x4000;
                }

                this->actor.world.pos.x += speed * Math_SinS(angle);
                this->actor.world.pos.z += speed * Math_CosS(angle);
            }
        }

        Player_ZeroSpeedXZ(this);

        this->actor.gravity = 0.0f;
        this->actor.velocity.z = 0.0f;
        this->actor.velocity.y = 0.0f;
        this->actor.velocity.x = 0.0f;

        if (CHECK_BTN_ALL(sControlInput->cur.button, BTN_L) && CHECK_BTN_ALL(sControlInput->press.button, BTN_DLEFT)) {
            Flags_SetTempClear(play, play->roomCtx.curRoom.num);
        }

        Math_Vec3f_Copy(&this->actor.home.pos, &this->actor.world.pos);

        return 0;
    }

    return 1;
    #else
    return 1;
    #endif
}

../_images/4_dissable_no_clip1.png ../_images/4_dissable_no_clip2.png

4-7 Disable File1 debug status

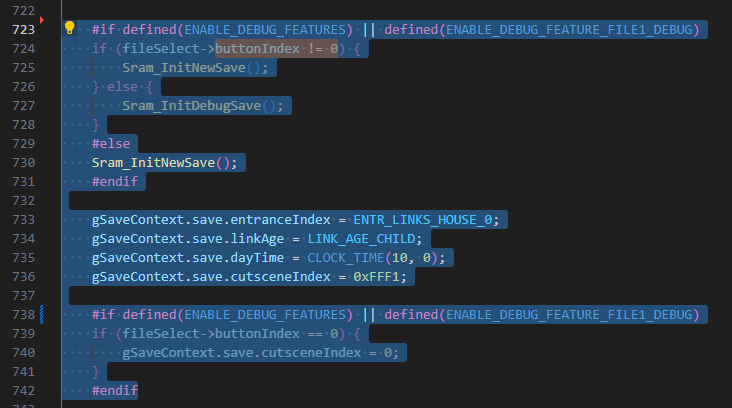

1.- In VSCode press Ctrl+P to search for a file called z_sram.c and open it

2.- Press Ctrl+F and search for buttonIndex != 0

3.- Remove the whole if statement and paste the following code:

#if defined(ENABLE_DEBUG_FEATURES) || defined(ENABLE_DEBUG_FEATURE_FILE1_DEBUG)
if (fileSelect->buttonIndex != 0) {
    Sram_InitNewSave();
} else {
    Sram_InitDebugSave();
}
#else
Sram_InitNewSave();
#endif

3.- Remove the next if statement (under gSaveContext declarations) and paste the following code:

#if defined(ENABLE_DEBUG_FEATURES) || defined(ENABLE_DEBUG_FEATURE_FILE1_DEBUG)
if (fileSelect->buttonIndex == 0) {
    gSaveContext.save.cutsceneIndex = 0;
}
#endif
../_images/4_dissable_file1_debug1.png

4.- Press Ctrl+P to search for a file called z_file_choose.c and open it

5.- Press Ctrl+F and search for buttonIndex == FS_BTN_SELECT_FILE_1

3.- Remove the whole if(){}else{} statement and paste the following code:

If-else replacement
#if defined(ENABLE_DEBUG_FEATURES) || defined(ENABLE_DEBUG_FEATURE_FILE1_DEBUG)
if (this->buttonIndex == FS_BTN_SELECT_FILE_1) {
   Audio_PlaySfxGeneral(NA_SE_SY_FSEL_DECIDE_L, &gSfxDefaultPos, 4, &gSfxDefaultFreqAndVolScale,
       &gSfxDefaultFreqAndVolScale, &gSfxDefaultReverb);
   gSaveContext.fileNum = this->buttonIndex;
   Sram_OpenSave(&this->sramCtx);
   gSaveContext.gameMode = GAMEMODE_NORMAL;
   SET_NEXT_GAMESTATE(&this->state, MapSelect_Init, MapSelectState);
   this->state.running = false;
} else {
   Audio_PlaySfxGeneral(NA_SE_SY_FSEL_DECIDE_L, &gSfxDefaultPos, 4, &gSfxDefaultFreqAndVolScale,
       &gSfxDefaultFreqAndVolScale, &gSfxDefaultReverb);
   gSaveContext.fileNum = this->buttonIndex;
   Sram_OpenSave(&this->sramCtx);
   gSaveContext.gameMode = GAMEMODE_NORMAL;
   SET_NEXT_GAMESTATE(&this->state, Play_Init, PlayState);
   this->state.running = false;
}
#else
Audio_PlaySfxGeneral(NA_SE_SY_FSEL_DECIDE_L, &gSfxDefaultPos, 4, &gSfxDefaultFreqAndVolScale,
    &gSfxDefaultFreqAndVolScale, &gSfxDefaultReverb);
gSaveContext.fileNum = this->buttonIndex;
Sram_OpenSave(&this->sramCtx);
gSaveContext.gameMode = GAMEMODE_NORMAL;
SET_NEXT_GAMESTATE(&this->state, Play_Init, PlayState);
this->state.running = false;
#endif

../_images/4_dissable_file1_debug2.png

4-7 Manage debug tags

As a reminder, at the start of the** Makefile file, we have set the debug flags:

 1# List of all custom debug flags:
 2#    -DENABLE_DEBUG_FEATURES                      -> Activates ALL debug features
 3#    -DENABLE_DEBUG_FEATURE_VISUAL_BUTTON_MARKER  -> Activates the visual indicator of the pad button you are pushing
 4#    -DENABLE_DEBUG_FEATURE_SKIP_START_CUTSCENE   -> Activates going straigth to a cutscene in the main menu when pressing START
 5#    -DENABLE_DEBUG_FEATURE_MAP_SELECTOR          -> Activates the ability to access to the map selector
 6#    -DENABLE_DEBUG_FEATURE_DEBUG_MENU            -> Activates the ability to go to the debug meny when pressing L in the game menu
 7#    -DENABLE_DEBUG_FEATURE_NO_CLIP               -> Activates the ability to enter in no-clip mode
 8#    -DENABLE_DEBUG_FEATURE_FILE1_DEBUG           -> Activates the debug behabiour of the FILE1
 9
10#CFLAGS ?=
11CFLAGS ?= -DENABLE_DEBUG_FEATURES

In the first 8 lines, all the flags that we have been using when dissabling all the debug features are being described.

As you can see, all of them starts like this: -D[FLAG_NAME] and that’s because the -D prefix is a way to define a new variable.

What we have been doing when dissabling debug features was to set an if statement arround all those features that checks if the ENABLE_DEBUG_FEATURES flag is defined or if it’s specific flag is defined.

That means that those features only will be available if one of those flags are defined.

¿How to define a flag? As you can see, below the list of flags, there are a variable called CFLAGS and if you pay close attention, you can see that it has -DENABLE_DEBUG_FEATURES as value.

Note

You can pass multiple flags to CFLAGS, you just need to separate the with an space.

If you want to remove all debug features, leave the CFLAGS variable empty (like the commented one).

If you want to enable all debug features, set the value of CFLAGS to -DENABLE_DEBUG_FEATURES.

If you only want to enable some of the debug features, set the value of CFLAGS with the flags you want to enable separated with an space.
